●技术参数：                                                     ●Technical parameters:

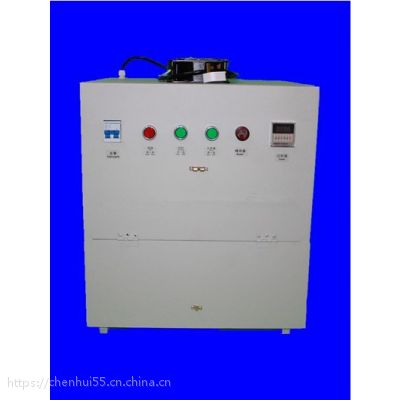

机器型号：CH–101                                            Machine model: CH - 101
机器尺寸：L450×W350×H620mm                   Machine size: L450 x W350 x H620mm
UV灯参数：1KW×230mm×1支                        UV lamp: 1KW ＊ 230mm ＊ 1
UV灯种类：紫外线高压汞灯                              UV lamp types: ultraviolet high pressure mercury
灯管强度：100                                                   lampLamp intensity: 100
UV灯功率密度：100W/cm                                The UV lamp power density: 100W/cm
冷却方式:强制风冷                                             Cooling: forced air.
自动延时关机：无                                              Automatic delay shutdown: no
外接电源：220V                                              External power supply: 220V
温度参考：动态温度低于65℃                          The temperature reference: dynamic temperature below 65 ℃

●适应范围：紫外线UV胶固化，油墨或者漆料固化
●Applicable scope: ultraviolet UV curing, ink or paint curing
●可添加：故障报警，其它未说明事项可按客户需求定做
●add: fault alarm, other unspecified matters can be customized according to customer demand
